In-depth analysis Q367F Fully Welded Trunnion Ball Valve for Heating


18Q367F供暖固定球式全焊接球阀 拷贝.jpg

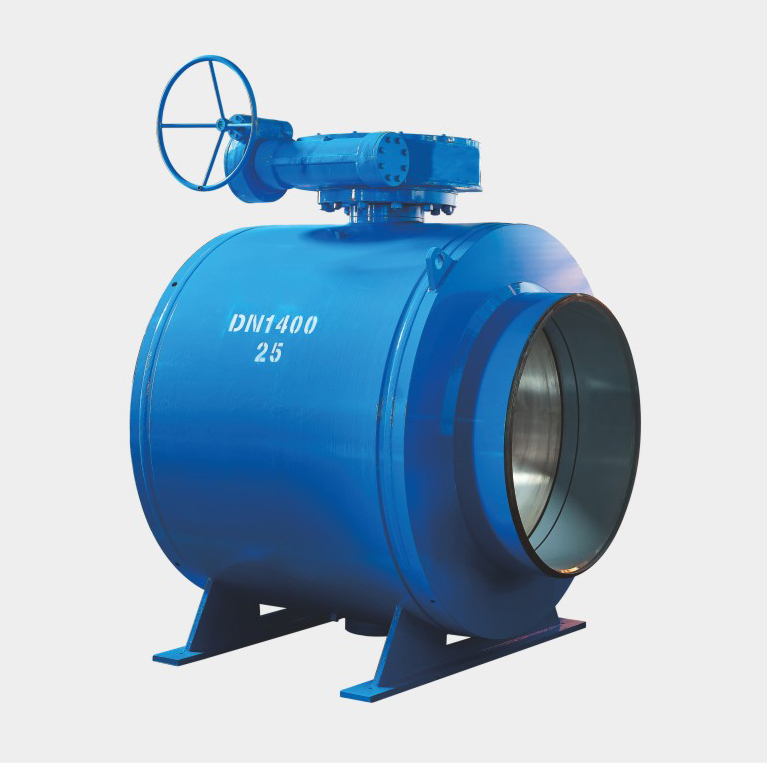

In-depth analysis Q367F Fully Welded Trunnion Ball Valve for Heating

With the increasing demand for heating systems in industrial and civil buildings, efficient and reliable pipeline control equipment has become increasingly important. Among numerous types of valves, Q367F heating fixed ball fully welded ball valve stands out due to its unique design and excellent performance. This article aims to provide you with a comprehensive understanding of the relevant knowledge of this ball valve.

1、 What is Q367F heating fixed ball type fully welded ball valve?

Q367F heating fixed ball type fully welded ball valve is a pipeline control device specifically designed for heating systems. It adopts a fully welded structure design, which means that during its installation process, the valve body and pipeline are connected by welding, which can withstand higher pressure and ensure good sealing performance. "Q367F" is the code name for this model of ball valve, where "Q" usually represents ball valve, "3" represents a three piece structure, "6" refers to the connection method being welding, "7" represents the material of the valve seat sealing surface, and "F" represents the material of the valve body.

2、 The main characteristics of Q367F ball valve

1. Fixed ball design: The Q367F ball valve adopts a fixed ball design, which means that the ball does not rotate with the operating rod inside the valve, reducing friction and improving the service life of the valve.

2. Fully welded structure: The fully welded structure provides excellent pressure resistance and leak resistance, especially suitable for use in high-pressure and large-diameter heating systems.

3. Dual directional sealing: This ball valve has a dual directional sealing function, ensuring good sealing performance and preventing medium leakage whether the medium flows forward or backward.

4. Fire resistant design: Some models of Q367F ball valves also have fire resistant characteristics, which can maintain sealing performance for a certain period of time in the event of a fire.

5. Multiple driving methods: According to different usage requirements, the Q367F ball valve can choose from various driving methods such as manual, electric, or pneumatic.

3、 Application fields of Q367F ball valve

Due to its excellent performance characteristics, the Q367F heating fixed ball all welded ball valve is widely used in pipeline systems in industries such as urban heating, petroleum, chemical, steel, and pharmaceuticals, to cut off or regulate flow.

4、 Key points of operation and maintenance

When operating the Q367F ball valve, make sure to follow the instructions provided by the manufacturer to avoid damage caused by improper operation. Regular maintenance and inspection are key to ensuring the long-term stable operation of ball valves, including cleaning the valve body, checking the wear of sealing surfaces, and testing the sealing performance of the valve.

In summary, the Q367F heating fixed ball type fully welded ball valve has become an indispensable component of modern heating systems due to its advanced design and reliable performance. Understanding its working principle, characteristics, and applications can help users better choose and use this type of ball valve to ensure the efficiency and safety of heating systems.
